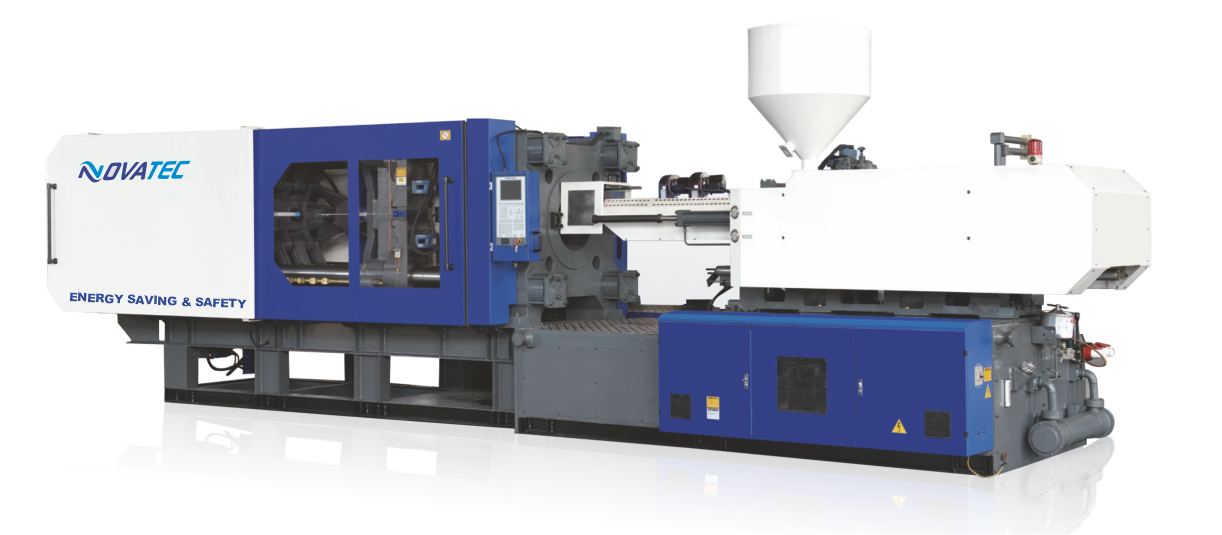

ADVANTAGES OF SERVO ENERGY-SAVING INJECTION MOLDING MACHINE
Range 40 Ton To 1600 Ton

High Performance Injection Moulding Machine

• Servo control, completely eliminating high-pressure throttling, saving 50%-80% electricity compared to asynchronous motors and Fixed pumps, Power saving 30% -50% compared to asynchronous motor + variable pump.
• Quick response, 0-100% liter, speed of (0.1 sec, 0-100% pressure change The fastest up to 30ms, improve production efficiency).
• The precision of control is accurate, the error of repetition precision is 0.1%, and the product is precise. High overload capacity, servo torque overload is greater than or equal to 200%.
• State conversion is flexible: speed, torque control flexible switching, smooth.
• Reduce the temperature of hydraulic oil and reduce the amount of cooling water by more than 30%. Some occasions do not even need water cooling.
• Reduce the impact of open and lock mold, prolong hydraulic oil pump, mechanical and mold service life.
• Reduce noise and improve working environment.

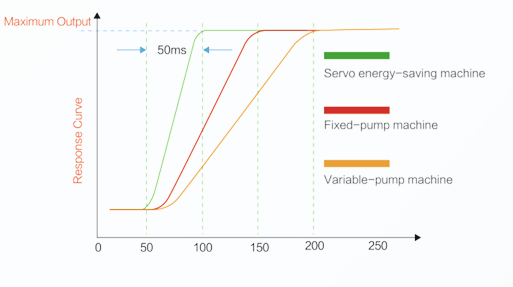

SERVER MOTOR DRIVER SYSTEM

Due to the adoption of high response servo motor and internal gear pump power system, the maximum output of the injection machine is only 0.05s. Compared with the traditional hydraulic injection molding machine, the response speed of the injection molding machine is obviously faster, which effectively shortens the cycle and improves the production efficiency.

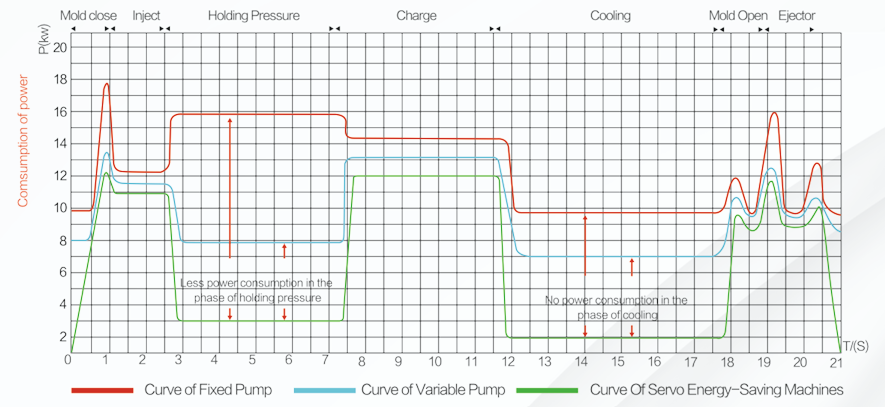

CURVE OF SERVO ENERGY SAVING MACHINE

From the above picture, we can see that the output power is adjusted at any time with the load changing, avoiding the waste of energy. In the stage of holding pressure, the servo motor reduces the rotational speed and the energy consumption is very low. Especially in the cooling stage, the motor does not need to work, and the power consumption is 0. According to the different molding process, servo energy saving injection molding machine can save energy and power 20-80% compared with the traditional injection molding machine. According to the above data, when idle time occupies only 1/4 of the total cycle, the energy saving effect is very obvious. Let you really experience the benefits of electricity saving.
